Rainfall-Runoff modeling is one of the most classical applications of hydrology. It has the purpose of simulating the peak river flow or the hydrograph induced by an observed or a hypothetical rainfall forcing. Rainfall-runoff models may include other input variables, like temperature, information on the catchment or others. Within the context of this subject, we are studying rainfall-runoff models with the purpose of producing estimates of peak river flow (see the application of the rational formula in this lecture), simulation of flood hydrographs or simulation of synthetic river flows in general, even for extended periods, for example for setting up water resources management strategies.

Therefore, rainfall-runoff modelling is a cross cutting topic over several of the major issue this subject is focusing on. In view of its central role, rainfall-runoff modelling is then treated separately in this web page.

Rainfall-runoff models describe a portion of the water cycle (see Figure 1) and therefore the movement of a fluid - water - and therefore they are explicitly or implicitly based on the laws of physics, and in particular on the principles of conservation of mass, conservation of energy and conservation of momentum. Depending on their complexity, models can also simulate the dynamics of water quality, ecosystems, and other dynamical systems related to water, therefore embedding laws of chemistry, ecology, social sciences and so forth.

Models are built by constitutive equations, namely, mathematical formulations of the above laws, whose number depends on the number of variables to be simulated. The latter are the output variables, and the state variables, which one may need to introduce to describe the state of the system. Constitutive equations may include parameters: they are numeric factors in the model equations that can assume different values therefore making the model flexible. In order to apply the model, parameters needs to be estimated (or calibrated, or optimized, and we say that the model is calibrated, parameterized, optimized). Parameters usually assume fixed value, but in some models they may depend on time, or the state of the system.

Figure 1. The hydrologic cycle (from Wikipedia)

Rainfall-runoff models can be classified within several different categories. They can distinguished between event-based and continuous-simulation models, black-box versus conceptual versus process based (or physically based) models, lumped versus distributed models, and several others. It is important to note that the above classifications are not rigid - sometimes a model cannot be unequivocally assigned to one category. We will treat rainfall-runoff models by taking into consideration models of increasing complexity.

**1. The rational formula**

The rational formula is discussed here. We just note in this page that it delivers an estimate of the peak river flow only, and that it is implicitly based on the principle of mass conservation. There is also the implicit use of the principle of conservation of energy in the estimation of the time of concentration. In fact, even if such time is estimated empirically, the mass transfer to the catchment outlet is actually governed by transformation and conservation of energy.

**3.2.2. The linear reservoir**

The linear reservoir is one of the most used rainfall-runoff models, together with the time area method (see also this link)which we will not discuss here. The linear reservoir model assimilates the catchment to a reservoir, for which the conservation of mass applies. The reservoir is fed by rainfall, and releases the river flow through a bottom discharge, for which a linear dependence applies between the river flow and the volume of water stored in the reservoir, while other losses - including evapotranspiration - are neglected. Therefore, the model is constituted by the following relationships:

\(\frac{dW(t)}{dt}=p(t)-q(t)\)

and

\(W(t)=kq(t)\)

where \(W(t)\) is the volume of water stored in the catchment at time \(t\), \(p(t)\) is rainfall volume per unit time over the catchment, \(q(t)\) is the river flow at time \(t\) and \(k\) is a constant parameter with the dimension of time (if the parameter was not constant the model would not be linear).

The second equation above assumes a linear relationship between discharge and storage into the catchment. The properties of a linear function are described here. Actually, the relationship between storage in a real tank and bottom discharge is an energy conservation equation that is not linear; in fact, it is given by the well-known Torricelli's law. Therefore the linearity assumption is an approximation, which is equivalent to assuming that the superposition principle applies to runoff generation. Actually, such assumption does not hold in practice, as the catchment response induced by two subsequent rainfall events cannot be considered equivalent to the sum of the individual catchment responses to each single event. However, linearity is a convenient assumption to make the model simpler and analytical integration possible.

A nice feature of the linear reservoir is that the above equations can be integrated analytically, under simplifying assumption. In fact, by substituting the second equation into the first one gets:

\(k\frac{dq(t)}{dt}=p(t)-q(t)\)

Then, by multiplying both sides by *e ^{t/k}* and dividing by

*k*one gets:

\(e^{t/k}\frac{dq(t)}{dt}+e^{t/k}\frac{q(t)}{k}-e^{t/k}\frac{p(t)}{k}=0\)

which can be written as:

\(\frac{d}{dt}\left[e^{t/k}q(t)\right]=e^{t/k}\frac{p(t)}{k}\)

By integrating between 0 and *t* one obtains:

\(\int_0^t \frac{d}{dt}\left[e^{\tau/k}q(\tau)\right]d\tau=\int_0^t e^{\tau/k}\frac{p(\tau)}{k} d\tau\)

and then

\(\left[e^{\tau/k}q(\tau)\right]^t_0 =\int_0^t e^{\tau/k}\frac{p(\tau)}{k} d\tau,\)

\(e^{t/k}q(t)-q(0)=\int_0^t e^{\tau/k}\frac{p(\tau)}{k} d\tau,\)

and, by assuming \(q(0)=0\) one gets:

\(q(t)=\int_0^t \frac{e^{\tau/k}}{e^{t/k}}\frac{p(\tau)}{k} d\tau,\)

and, finally,

\(q(t)=\int_0^t \frac{1}{k}e^{\frac{-(t-\tau)}{k}}p(\tau)d\tau\)

which can be easily integrated numerically by using the Euler method.

If one assumes *p(t)*=constant, an explicit expression is readily obtained for the river flow:

\(q(t)=\frac{p}{k}\int_0^t e^{\frac{-(t-\tau)}{k}}d\tau\)

\(q(t)=\frac{p}{k}e^{-\frac{t}{k}}\int_0^t e^{\frac{\tau}{k}}d\tau\)

\(q(t)=\frac{p}{k}e^{-\frac{t}{k}}\left[ke^{\frac{\tau}{k}}\right]_0^t\)

\(q(t)=\frac{p}{k}e^{-\frac{t}{k}}\left[ke^{\frac{t)}{k}}-k\right]\)

\(q(t)=p\left[1-e^{-\frac{t}{k}}\right].\)

Figure 2 shows the progress of river flow with constant rainfall and Q(0)=0.

Figure 5. Output from the linear reservoir with constant rainfall and Q(0)=0.

The parameter *k* is usually calibrated by matching observed and simulated river flows. Its value significantly impacts the catchment response. A high *k* value implies a large storage into the catchment. Therefore, large values of *k* are appropriate for catchment with a significant storage capacity. Conversely, a low *k* value is appropriate for impervious basins. *k* is also related to the response time of the catchment. A low *k* implies a quick response, while slowly responding basins are characterised by a large *k*. In fact, *k* is related to the response time of the catchment. The linear reservoir is also described here.

**3. The non-linear reservoir**

Several variants of the linear reservoir modeling scheme can be introduced, for instance by adopting a non linear relationship between discharge and storage. Moreover, an upper limit can be fixed for the storage in the catchment, and additional discharges can be introduced, which can be activated for different levels of storage. All of the above modifications make the model non-linear so that an analytical integration is generally not possible. One should also take into account that increasing the number of parameters implies a corresponding increase of estimation variance and therefore simulation uncertainty. Furthermore, it is often observed that introducing additional discharges or thresholds may induce discontinuities in the hydrograph shape. The non-linear reservoir is described here.

* *

Figure 2. A non-linear reservoir (from Wikipedia)

**4. The Hymod model**

The Hymod model is a flexible solution that is increasingly adopted for its capability of providing a good fit in several practical applications. It was originally proposed by Boyle (2000). It is based on the assumption that each point location i in the basin is characterised by a local value of soil water storage C_{i}, which varies from 0 in the impervious areas up to a maximum value C_{max} in the most permeable location of the catchment. C_{i} is assumed to be randomly varying, so that for an assigned value C_{*} of soil water storage a probability distribution is introduced that gives the probability that a randomly selected location j is characterised by C_{j} less then, or equal to, C_{*}. Such probability may be interpreted as the fraction F(C_{*}) of the catchment area where C_{j}≤C_{*}. The above probability distribution is written as

Here, β_{k} is a parameter which quantifies the variability of the soil water storage over the catchment. One can easily verify by numerical simulation that β_{k}=0 implies that the soil water storage is constant over the basin and equal to C_{max}; β_{k}=1 implies that the soil water storage is linearly varying from 0 to C_{max}; β_{k}→∞ implies that the soil water storage is tending to the null value over the whole catchment, which is therefore impervious.

Let us assume that a storm event occurs over the basin and let us define with the symbol C(t) the time varying water depth stored in the unsaturated locations of the catchment. If we ignore any water losses, like evapotranspiration, C(t) is equal to the rainfall amount from the beginning of the event. If one assumes that the shape of the above probability distribution, now expressed in terms of C(t), is the one reported in Figure 3, it can be easily proved that the water volume stored in the catchment at time t is given by

* *

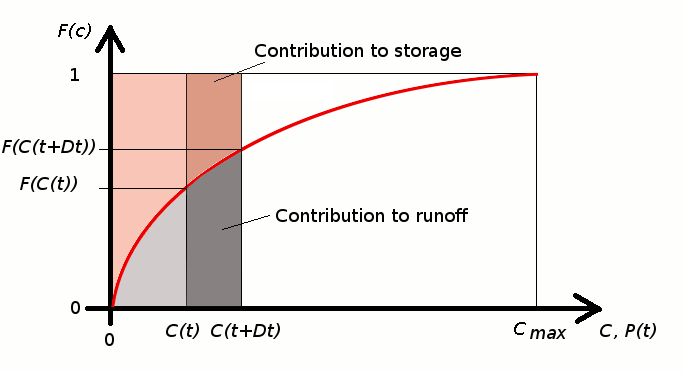

Figure 3. Distribution of soil water storage, surface runoff and stored volume in Hymod

In fact, the integral at the right hand side of the above equation is the area below the red line in Figure 3. Elementary increment of that area are given by the product of the rainfall at each time step by the fraction F(c(t)) of saturated area at the same time, namely, the product of rainfall by saturated area, which is indeed the surface runoff. Conversely, the area above the curve gives the global storage into the catchment W(t), which can be interpreted as a weighted average value of C(t). The progress of surface runoff and water storage is depicted by the animated picture in Figure 4. Note that after saturation, the contribution of surface runoff is given by the product of the rainfall itself by 1, which is the fraction of saturated area, taking and keeping unit value when the catchment is saturated. After saturation, the storage in the catchment of course does not increase any more.

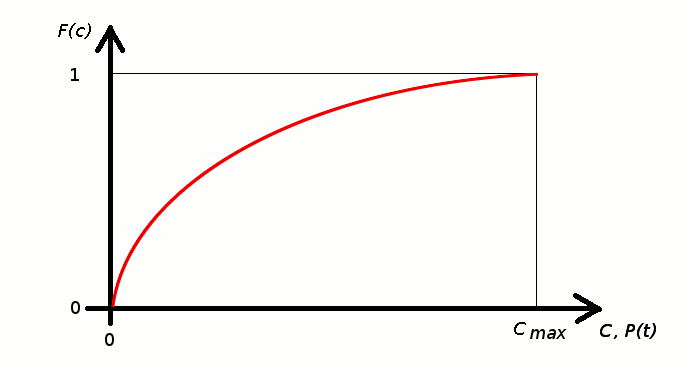

Figure 4. Progress of surface runoff and stored volume in Hymod

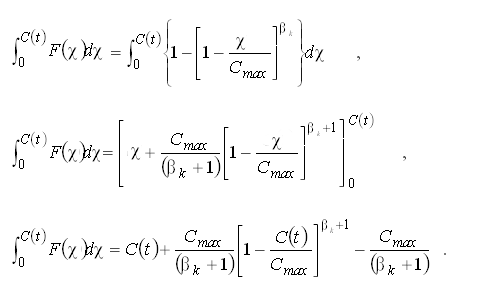

By computing the integral in the latter relationship one obtains:

Therefore the water volume stored in the catchment is equal to

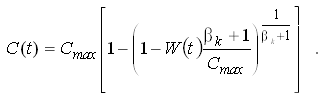

By inverting the above equation one gets

Note that one obtains an estimate of the upper value of the water volume that the catchment can store by imposing C(t)=C_{max}, therefore obtaining

The above equations allow an easy application of the Hymod model through a numerical simulation, that is usually carried out by adopting a time step Dt that is equal to observational time step of rainfall and river flow. At a given time step t, one knows the value of C(t) which is equal to the cumulative rainfall depth from the beginning of the event at time t. Therefore, W(t) can be easily computed as well by using the above relationships. At the time t+1, C(t+1)=C(t)+P(t), where P is rainfall, under the condition that C(t+1)=C_{max} if C(t)+P(t)>C_{max}. Therefore, one can compute a first contribution to surface runoff through the relationship ER_{1}(t)=max(C(t)+P(t)-C_{max},0).

Finally, one can compute a second contribution to the surface runoff which is given by the water volume that cannot be absorbed by the catchment because part of the catchment area got saturated in the last time step. Such second contribution is given by ER_{2}(t)=(C(t+1)-C(t))-(W(t+1)-W(t)). By summing ER_{1}+ER_{2} one obtains the total contribution to the surface runoff during the time step from t to t+1.

At this stage, one may evaluate the water losses given by evapotranspiration at the current time step, and subtract them from W(t+1). Such water losses are computed within Hymod through the relationship

Here, E_{p}(t) is the potential evapotranspiration at time t. Then, the water storage at time t+1 is given by W(t+1)=W(t)-E_{p}(t). One should note that the evapotranspiration is subtracted from the stored water volume after ER_{1} and ER_{2} are computed.

The total contribution ER(t)=ER_{1}(t)+ER_{2}(t) to the surface runoff is then divided into 2 components: αER(t) which represent the fast runoff and (1-α)ER(t) which is the slow runoff. αER(t) is propagated through a series of linear reservoirs with the same bottom discharge time constant k_{q}, while (1-α)ER(t) is instead propagated through a single linear reservoir with parameter k_{s}.

The computation moves forward through the sequence of time steps. Hymod counts 5 parameters, namely: C_{max}, β, α, k_{q} and k_{s}. These parameters need to be calibrated by using observed data.

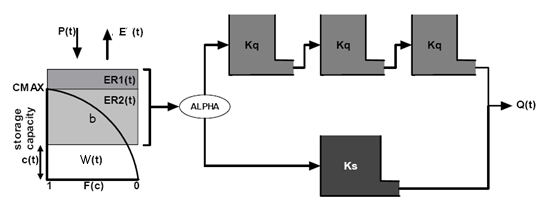

Figure 5. A schematic representation of the Hymod model

**References**

Boyle, D. P. (2000), Multicriteria calibration of hydrological models, Ph.D. dissertation, Dep. of Hydrol. and Water Resour., Univ. of Ariz., Tucson.
